Hotel TV Headend FAQ

  • Mathias Johnson, VP Product, Hospitality
    28th November 2018


  • Ever wondered where those TV channels in a Hotel TV comes from? Working with IPTV headends isn’t rocket science but does require professional skills. As a hospitality decision-maker, you need an understanding of the hotel tv headend fundamentals. In this post, we explain some of the basic concepts of TV channel reception and distribution in hotels, hospitals and cruise ships.


    What is a headend?

    A headend is used to receive TV channels from external sources and convert them to a unified format for distribution to the in-room TVs. A traditional headend consists of terrestrial and/or satellite antennas and an appliance that converts the TV signals.

    Broadcast headend or IPTV headend?

    A broadcast headend is used for distribution in a coaxial antenna network inside the building. An IPTV headend is used for streaming multicast IPTV channels over a local area network (LAN) instead of the coax network. So, if you already have a coax network and don't want to upgrade to IPTV and LAN you need a broadcast headend, otherwise an IPTV version. Some hotel TV systems use both to distribute different kinds of channels, but the cost-efficient version is to go with one or the other.

    Why do I need a headend for my hospitality TV system?

    At home, the Smart TV’s tuner or an external set-top box (STB) is used to receive the TV channels. When the channel line-up changes or some tuning parameters are updated, the channels must be re-scanned on the TV. This approach works at home, but not in larger buildings. With a headend, the update is done once and takes effect in all rooms. The Hibox Smartroom hospitality TV system can be used to manage, provision and monetize on the channels.

    What headend brands work with Hibox Smartroom?

    Hibox Smartroom is a very flexible hotel tv solution so we’re tempted to state that all brands work. However, the output from the headend is only processed by the hospitality TV in the room, not by the Hibox Smartroom server. Hence, Hibox Smartroom is agnostic to the TV signal/stream format. If the TV supports it, so do we. For example, Hibox Smartroom is used with headends from brands like Wisi and Teleste. The table below lists a number of headend manufacturers that Hibox Smartroom is frequently used with. You can also check which TV brands and models are compatible with Hibox Smartroom.


    Headend Manufacturers Offers Broadcast Headend modules Offers IPTV Headend Modules Used with Hibox Smartroom Hospitality TV System
    Anevia Yes Yes Yes
    Blankom Yes Yes Yes
    Grundig Sat Systems Yes Yes Yes
    Ikusi Yes Yes Yes
    Teleste Yes Yes Yes
    Triax Yes Yes Yes
    Wisi (previously A2B) Yes Yes Yes

    Where do the TV channels come from?

    The headend typically receives TV channels from satellite dishes, terrestrial antennas and/or cable from cable TV operators. It’s also possible to receive TV channels from the internet and other network equipment like IPTV cameras or computers.

    How are the channels distributed to the in-room TVs?

    The headend is the most important part of your hotel TV distribution system and usually forwards the tv channels within the building through one of the following wired connections:

    • via Ethernet cables (as Single Program Transport Streams (SPTS) over multicast IP), or
    • via coaxial antenna cables (as Multiple Program Transport Streams (MPTS), or “muxed”).

    Wifi is generally not reliable enough for streaming live TV to many adjacent rooms.

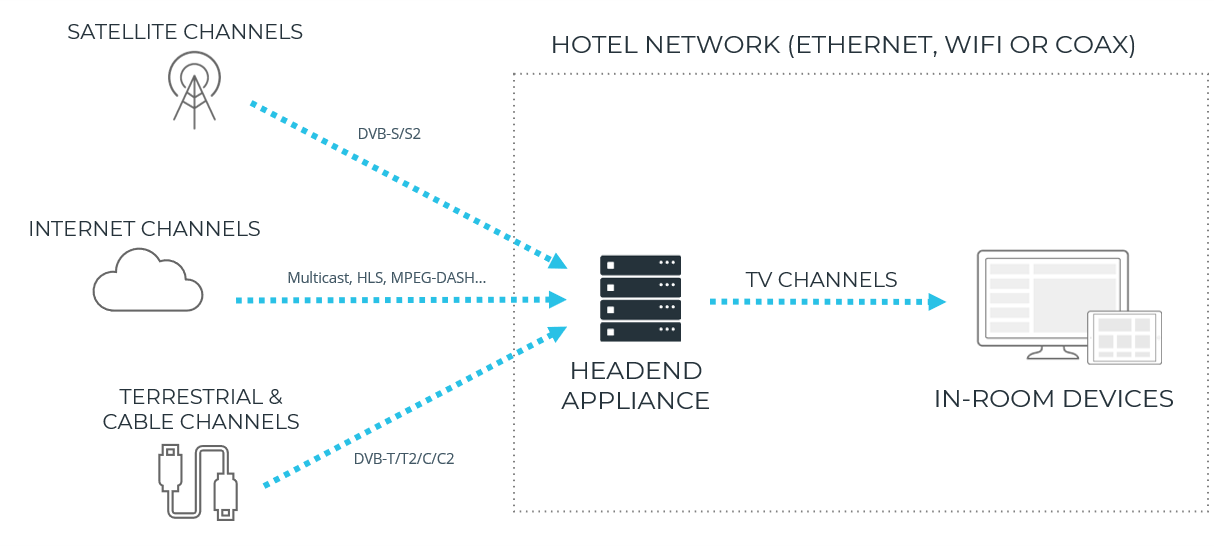

    The image below illustrates the headends role within the hospitality tv system.

    Graphic of hospitality tv system architecture with headend as focus point

    Can I keep my current headend?

    Yes, if the channel line-up is good and the new TVs support the format that the old headend outputs. If not, the headend can be updated or replaced.

    How can my headend be updated for more channels?

    If the headend already has capacity for more channels of the same type, the headend technician can add the channels by simply reconfiguring the headend. If not, you need more receivers and possibly more satellite dishes or additional VHF/UHF antennas. If there’s no room for more receivers or if the existing headend is not modular, a new headend chassis is needed.

    What’s a chassis?

    All relevant headends are built modularly with a chassis (main unit) that can hold several input/output (I/O) modules. The chassis contains a power source and connectors, but it’s useless without the I/O modules.

    What’s a receiver?

    The receiver is the hardware component that does the actual conversion of the TV signal from the input format to the output format. An I/O module can contain one or more receivers. Many headends have two or four receivers in a single I/O module. The receiver is usually designed for a specific input format, like satellite, terrestrial or cable TV signals. Some receivers can handle several input formats.

    How many receiver modules do I need?

    One receiver can process one or more channels that are broadcast on the same frequency. You need at least one, and in most cases, several.

    What are the other parameters except for the frequency?

    This gets a bit techy but if you really want to know, broadcast digital TV channels are distributed with the following main parameters:

    • Broadcast standard, e.g. DVB-S(2), DVB-T(2), DVB-C, ATSC, ISDB etc., varies by region and antenna type.
    • Frequency: The physical frequency, a fixed frequency, typically in the UHF (300 MHz to 3 GHz) or VHF (30 to 300 MHz) bands.
    • Modulation scheme: Determines how the digital TV data is encoded physically on the carrier signal, which in turn affects the bandwidth and quality of the stream.
    • Encryption: Free-to-air (FTA) channels are broadcast unencrypted. Pay-TV channels are encrypted to enforce the business model and protect the rights holder from unwarranted viewers.

    Do I need one receiver per channel?

    No, luckily the channels are often multiplexed (muxed) so that several channels are available with the same parameters. The actual amount can vary between 2 and 15 on average. For example, public service free-to-air channels are often muxed so that a single receiver can receive all or many of them simultaneously. Pay-TV operators frequently group channels similarly, so that commercial channel packages are conveniently in the same mux. Multiplexing reduces the number of receivers.

    Can I keep my current satellite dishes?

    Yes, if the channel line-up is good. If you need more satellite channels, changes in the antenna system may be needed.

    • If the satellite dish/LNB has unused outputs, they can be used.
    • If all satellite dish/LNB outputs are in use and splitting isn’t an option, it may be possible to install an LNB with more outputs, to allow more channels from the same satellite.
    • If the channels are broadcast by a different satellite, you need to install another dish and LNB.

    What’s a low-noise block downconverter or LNB?

    The LNB (low-noise block downconverter) is the little box in the focus point of the satellite dish that converts the radio waves from the satellite to a TV signal that the headend appliance can process. LNBs often have several output connectors (dual, quad, octo LNBs). Every receiver in the headend with inputs for satellite TV must be connected to its own output connector on the LNB.

    How do TV channels from the internet work?

    Some operators may provide TV channels over IP networks, multicast within their own network or distributed over-the-top (OTT) across the public internet. There are special I/O modules for this purpose, with suitable decryption capabilities. This approach may be interesting if:

    • The channel content is interesting
    • The possibilities for placing antennas are limited
    • The pricing is better

    Can I use one headend for several locations?

    Yes. Traditionally, the headend is built locally in the same location as the viewers. However, with today’s technology, it’s possible to share the output from one headend to many locations. This centralized headend approach reduces the initial hardware investment and makes it very easy to manage the channels of all locations with a single administration interface like the Hibox Administrator. The bandwidth costs for cross-site streaming can be optimized in several ways. You can contact our TV Experts for more details.

    Can I get any headend brand and model?

    Yes and no. As the broadcast formats and parameters are based on universal standards, the choice of brand and model shouldn’t matter from the viewer’s perspective. The inputs and outputs should be the same. However, the choice of brand and model depends on many things.

    • The exact channel list will determine the required number of receivers of each type. Depending on how the I/O modules are organized, it may be possible to optimize the setup.
    • Some headends have more functionality, flexibility and configurability than others. This may or may not be relevant for the target environment.
    • The maintenance cost can be reduced when using a headend with very good remote management capabilities.
    • Given that all requirements are fulfilled, the final choice often comes down to price.

    If in the slightest doubt, we recommend a site survey, where a professional technician assesses the requirements, possibilities and limitations of the environment. This survey leads to a trustworthy recommendation. If you want to know more about how headends work and how you can make the most out of them in your Hotel TV System just hit the Contact Us button below and we will connect you with one of our TV Experts!
